RestoLights LED Sequential Tail Lights Kit for 1973-1987 Chevrolet C10 | Open-Box

LEDGlow Open-Box Products are as good as new, featuring a combination of returned or unused items and our existing inventory. Each purchase comes complete with all required parts which have been tested by our Tech Support Team for full functionality. These products deliver the same level of performance as brand-new items. Resealed or repackaged items may not feature original packaging and a 60-Day Warranty is included with every Open-Box purchase.

LEDGlow RestoLights for the 1973-1987 Chevrolet C10 are C10 Sequential Tail Lights that upgrade the factory C10 tail lights. This all-in-one lighting kit includes (2) Sequential Red LED Light Circuit Boards, (2) Red 194 LED Marker Light Bulbs, (2) 1156 White LED Reverse Bulbs, an Electronic Flasher and Adjustment Screwdriver. Drive with red LED lighting for Running Lights, Brake Lights and Turn Signals settings and enhanced white LED illumination for Reverse Lights. Turn Signals also feature 10 Selectable Flash Sequences which can be adjusted at any time.

LEDGlow RestoLights are a lineup of accent lighting systems designed for specific vehicles. These C10 Sequential Tail Lights are factory fitted to the 3rd Generation 1973-1987 Chevrolet C10. Development of this lighting kit and all testing was performed using a 1977 C10 to ensure precise fitment. They can also be installed to virtually any CK box body/square body full size pickups in the 3rd Generation 1973-1987 Chevy C10 year range including C10, C20, C30 and K-Series models. You can modify your stock C10 tail lights with ultra-bright C10 LED tail lights and stand out when you’re driving.

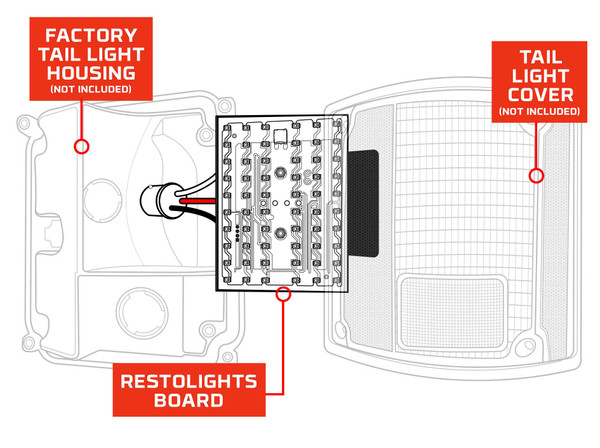

There’s no need for external hardware when installing Chevy C10 RestoLights at LEDGlow. Replace the stock tail lights with the included sequential red LED light circuit boards and use the factory tail light covers and factory hardware to secure them.

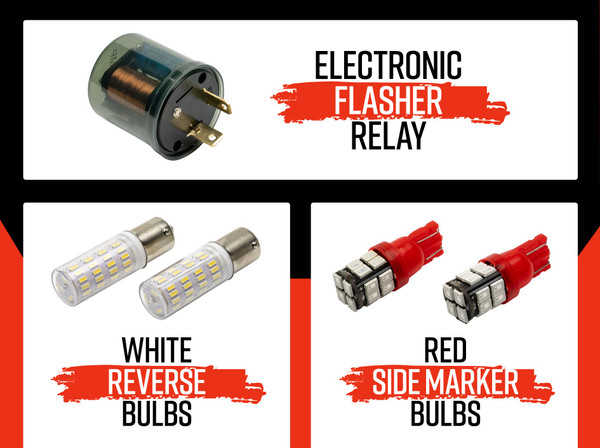

Electronic Flasher Relay The included Electronic Flasher is an electronic relay that allows the circuit to flash with the new tail light circuit boards. This component is included as part of each lighting kit and is required for the C10 Sequential Tail Lights to function properly.

White Reverse Bulbs The White LED Reverse Bulbs provided are equipped with 63 white LEDs per bulb and seamlessly replace the factory tail light bulbs. Upgrade to ultra-bright white LED illumination and alert other drivers anytime you’re backing up your 3rd Gen C10 truck.

Red Side Marker Bulbs Red Side Marker Light Bulbs included with these Chevy C10 LED tail lights deliver ultra-bright illumination anytime the Running Lights setting is active. These LED bulbs provide additional lighting along the outer sides of the C10 tail lights for increased driving presence.

Tail Light Functions

Activate Running Lights, Brake Lights, Turn Signals and White Reverse Lights settings with these truck-specific C10 LED tail lights. Accentuate any 1973-1987 Chevy C10’s tailgate and experience additional driving safety by installing modified LED accent lighting.

RestoLights Circuit Boards

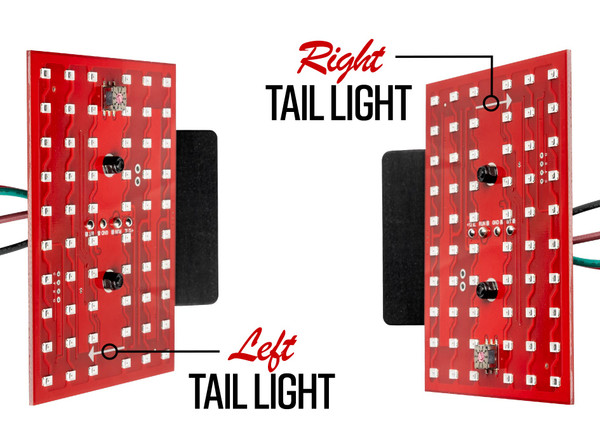

The Sequential Red LED Light Circuit Boards have 60 red LEDs per board and are installed by twisting the light bulb socket from the taillight circuit board into the taillight socket and connecting the red wiring to power. Arrows on the circuit boards indicate the direction in which they are installed.

Sequential Lighting Modes

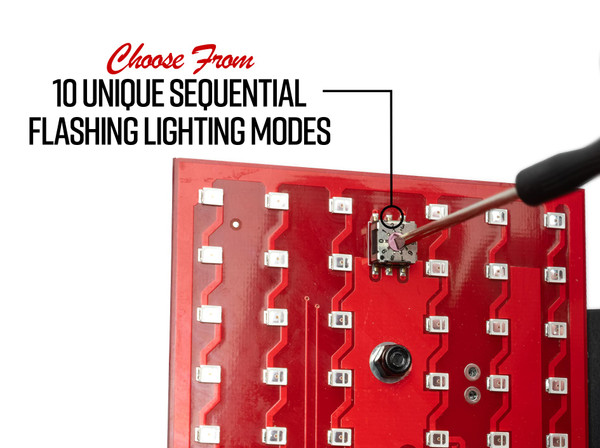

The 10 Selectable Flash Sequences available for the Turn Signals setting include Stock Flash, Middle Out Sequence, Strobe, Bottom Up Sequence, Middle Out Scan, Pulse, Bottom Up Scan, Middle Out, Bottom Up Rolling Scan and Demo Modes. Select each sequence using the included Adjustment Screwdriver.

C10 Sequential Tail Lights Electronic Flasher Relay

A unique part of this custom lighting kit is the Electronic Flasher, which is an electronic relay that allows the circuit to flash with the new tail light circuit boards. This component is needed for the 73-87 C10 LED Tail Lights to work properly. If you change a stock bulb to upgraded LEDs without changing to an electronic flasher relay, the turn signals will either stay solid and not flash or they will flash too quickly. Other companies charge for this kind of upgrade but we include it as part of this complete lighting kit for these aftermarket tail lights.

RestoLights 73-87 C10 LED Tail Lights

Benefits of C10 Sequential Tail Lights include upgrading your stock tail lighting to ultra-bright LED illumination. Not only will your Chevy truck look great, but you’ll also stand out on the road and let other drivers know anytime you’re changing lanes, slowing down or making a turn. RestoLights bring modern lighting and effects to classic makes and models. Accentuate the look of your 3rd Gen C10 with 73 87 C10 LED Tail Lights that replace the factory lights with ultra-bright LED illumination.

LEDGlow Open-Box Kits

LEDGlow Open-Box Kits have been tested by our Technical Support Team to ensure full functionality. Kits come shipped with all included parts, but may not come in its original packaging. A 60-Day Warranty is included with all Open-Box Kits.
